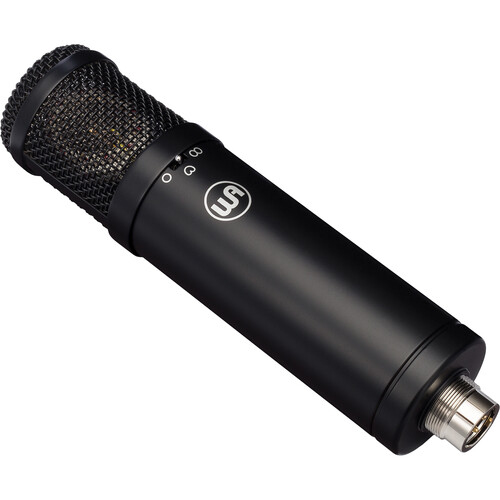

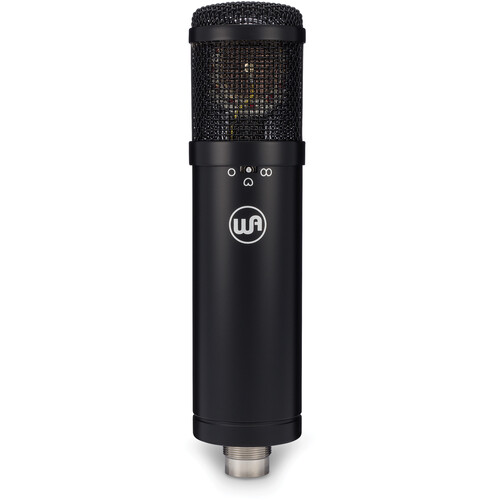

Warm Audio WA-47jr Large-Diaphragm FET Condenser Microphone (Black)

Description

Warm Audio WA-47jr Large-Diaphragm FET Condenser Microphone (Black)

Untuk Suara Studio dan Miking Instrumen
Cardioid, Omni & Figure-8 Pola Kutub
Reproduksi Kapsul Gaya K47
-10 dB Pad Mencegah Distorsi
Filter Lulus Tinggi 70 Hz
Termasuk Shockmount dan Hardmount
Diafragma Besar Ganda Tergagap Emas
Jalur Sinyal Sepenuhnya Diskrit
Output XLR Seimbang Tanpa Transformator
Membutuhkan Daya Phantom 48V

Offered here in a black finish, the Warm Audio WA-47jr is a large-diaphragm FET condenser microphone designed to provide the tonal characteristics of classic solid-state U47 microphones for vocalists, musicians, and recording engineers in home, project, and commercial recording studios. Thanks to three polar patterns—cardioid, omnidirectional, and figure-8—selectable from a switch on the front of the body, its versatility allows it to excel at anything from dry, close-up vocals to ambient room sounds. A -10 dB pad switch raises the maximum SPL from 147 dB to a high of 157 dB, enabling safe use when miking kick drums and cranked guitar and bass amps. Excessive low frequencies from proximity effect are easily reduced via the high-pass filter, which rolls off lows below 70 Hz.

The K47-style capsule reproduction features dual gold-sputtered, 6-micron Mylar diaphragms with a single backplate. The fully discrete signal path includes Toshiba FETs, WIMA film capacitors, and Panasonic electrolytic capacitors to deliver the clean tone associated with transformerless microphones. With a gold-plated XLR 3-pin connector and operability via 48V phantom power, it is compatible with most mixing consoles and mic preamps. It comes with a vibration-reducing shockmount and a compact hardmount to allow flexibility in placement and positioning.

Custom Capsule
The WA-47jr utilizes a custom reproduction of the vintage K47-style capsule that was used in the classic U47 microphone—designed with the same pattern and frequency response. Warm Audio’s version of this capsule (model WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer whose precision and consistency allows sonic replication of the most important piece of this classic style of microphone.
Low Noise
The WA-47jr’s discrete signal path pairs with the true U47-style capsule to obtain a very similar tone to the classic U47 microphone. The low self-noise of only 9 dBA enables pristine capture of quiet sound sources.
Tone-Impacting Components
The WA-47jr incorporates a modernized and simplified circuit design. Toshiba FETs, WIMA film capacitors, and Panasonic electrolytic capacitors contribute to the signature tone of the mic.
Configuration Flexibility
Three polar patterns and a -10 dB pad enable versatility for close and distant positions and loud and quiet sources. The 70 Hz high-pass filter aids in reducing rumble, proximity effect, and excessive low frequencies.
Features at a Glance
Updated transformerless version of the highly coveted classic ’47 microphone
Custom-made Warm Audio K47-style 1.3″ capsule (model# WA-47-B-80v)
Gold-sputtered, dual large diaphragms (6-micron Mylar) with a single backplate
Fully discrete signal path, Toshiba FETs, Wima film capacitors, and Panasonic electrolytic capacitors
Cardioid, figure-8, and omnidirectional polar patterns
70 Hz high-pass filter
-10 dB pad
XLR 3-pin output
Requires 48V phantom power
Includes shockmount, hardmount, and pouch
UPC: 860191002197

Isi Dalam Kotak:
Warm Audio WA-47jr Large-Diaphragm FET Condenser Microphone (Black)
Shockmount
Hardmount
Zippered Storage Pouch
Thread Adapter
Limited 1-Year Manufacturer Warranty
